Abstract

Every drug that's active has some contamination. These contaminations appear during the preparation of the drug or come from unwanted corridors that are present along with the main drug during the mixing or storage process. In the drug assiduity, contaminants are anything that isn't part of the drug and comes from the timber process or is left behind unintentionally. Both how pure a drug is and the types of contaminations it has are important in the drug field, and they're needed by the rules set by the authorities. According to guidelines from the International Council for Harmonization, checking for contamination through analysis is necessary and needed before a new drug can be approved for trade. Having contamination in a drug can affect the quality of the product. contaminations can be of different types, like organic and inorganic, and can come from starting accoutrements, intermediate way, by-products, or breakdown products. Special styles should be used to find and measure any contaminations that are further than 0.1. By chancing, relating, and measuring these contaminations, we can make a drug that's safer and has lower dangerous goods.

Keywords

Impurity profiling, Active Pharmaceutical Ingredients, Pharmaceutical impurities, ICH guidelines, Analytical techniques, Chromatography, Mass spectrometry, Spectroscopy, Degradation products, Quality control.

Introduction

Preface During the production of medicines, the main constituents, called Active Pharmaceutical Ingredients (APIs), and other added substances, known as excipients, aren't always fully pure. This is because contamination can come from different sources, similar to the way the medicine is made, the excipients used, leftover detergents, or substances that form over time. These contaminants are chemicals that are present in the final medicine product or the raw medicine substance. They don't help in treating the illness and can occasionally be dangerous if they're present in high quantities. When contaminants are anticipated to be in a medicine, they need to be set up and understood using proper testing methods. This process is called contamination profiling. moment, there are numerous ways available to help identify, understand, and figure out the structure of these contaminations. contamination profiling needs veritably sensitive, accurate, and effective testing methods because the contaminations are frequently present in veritably small quantities. Some important styles used for this purpose are Thin Layer Chromatography (TLC) and spectroscopy. These ways are essential for making sure that medicines are safe and of high quality. They've greatly improved the capability to detect and understand contaminants at veritably low concentrations, which helps in making better and safer drugs.

Impurity profiling significance: Contamination profiling is important for making sure that drugs vended in the request are of high quality. During the manufacturing process, it's necessary to check for any contamination present in the drug. Compared to the contamination diapason used in earlier studies for medicine enrolment, the standard contamination diapason is purer and of better quality. Synthesized contaminants are used in toxicology studies and also serve as a reference to identify contaminants. contaminations in drugs can change how the medicine dissolves and is absorbed, which may affect how the medicine works in the body. This can impact patient safety and also change how the medicine behaves in the body. thus, contamination profiling is essential to ensure the quality, effectiveness, and safety of pharmaceutical products.

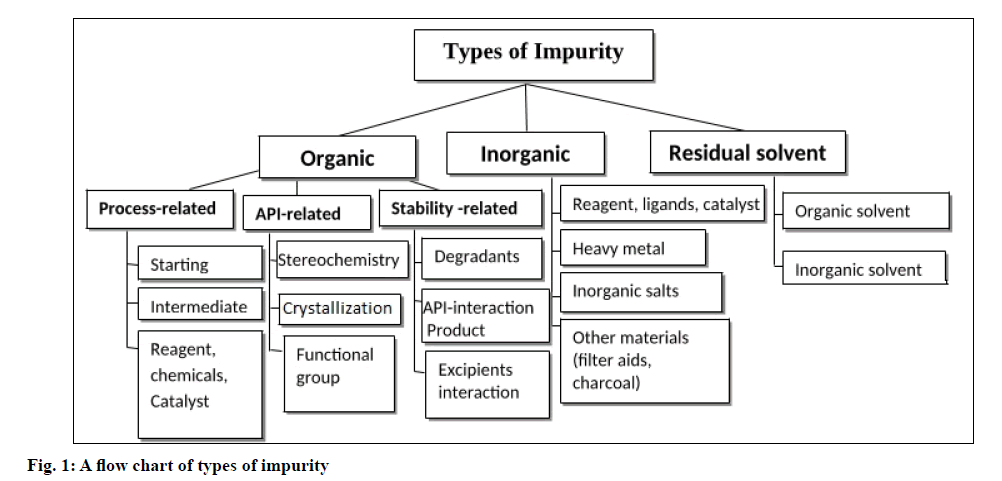

Types of impurities: Impurities may be divided into three types, similar as organic, inorganic, and residual solvent.

Chromatographic Techniques:

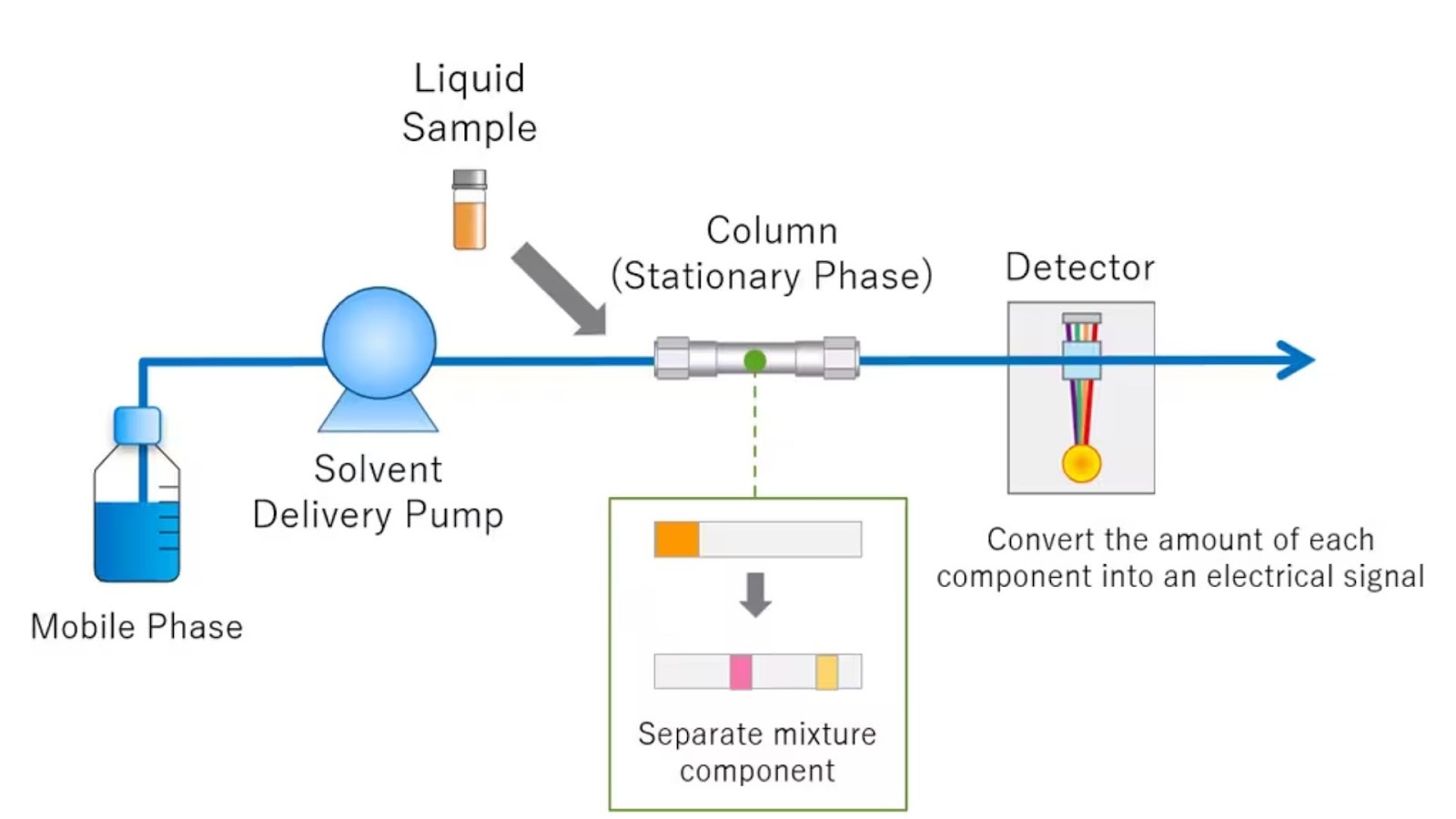

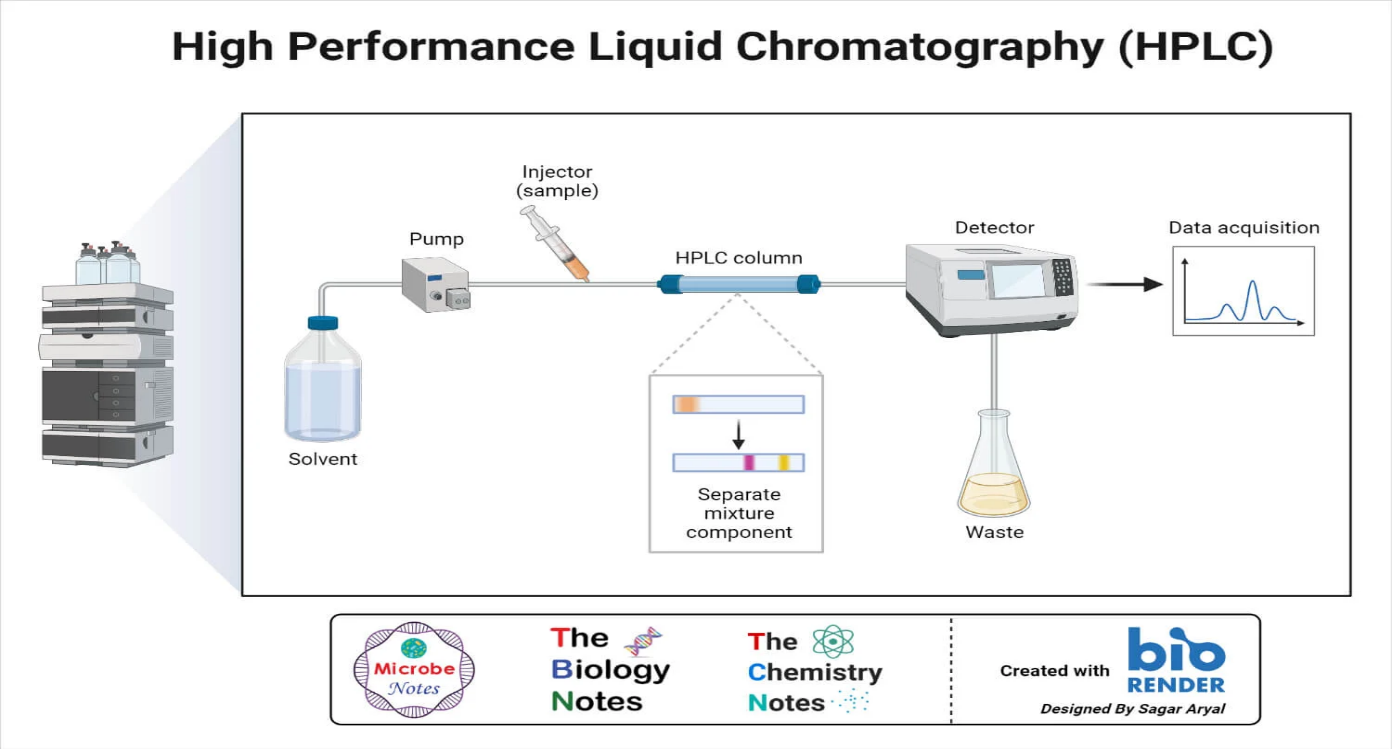

High-performance Liquid Chromatography (HPLC) is a system used for a multitude of different kinds of samples, not just clean, dry, or stable bones. It separates substances by how presto they move through two corridors, a fixed part and a moving part. HPLC is a good way to find out exactly how important medicine and other chemicals are in a sample. This system can be used with numerous types of detectors, like the Corona Charged Aerosol Sensor (CAD), Nano amount Aerosol Sensor (NQAD), PDA detector, fluorescence detectors, electrochemical detectors, electric conductivity detectors, light scattering detectors, and evaporative light scattering detectors. HPLC is also used to check if medicines stay the same over time. It helps find the exact amount of each part of a sample.

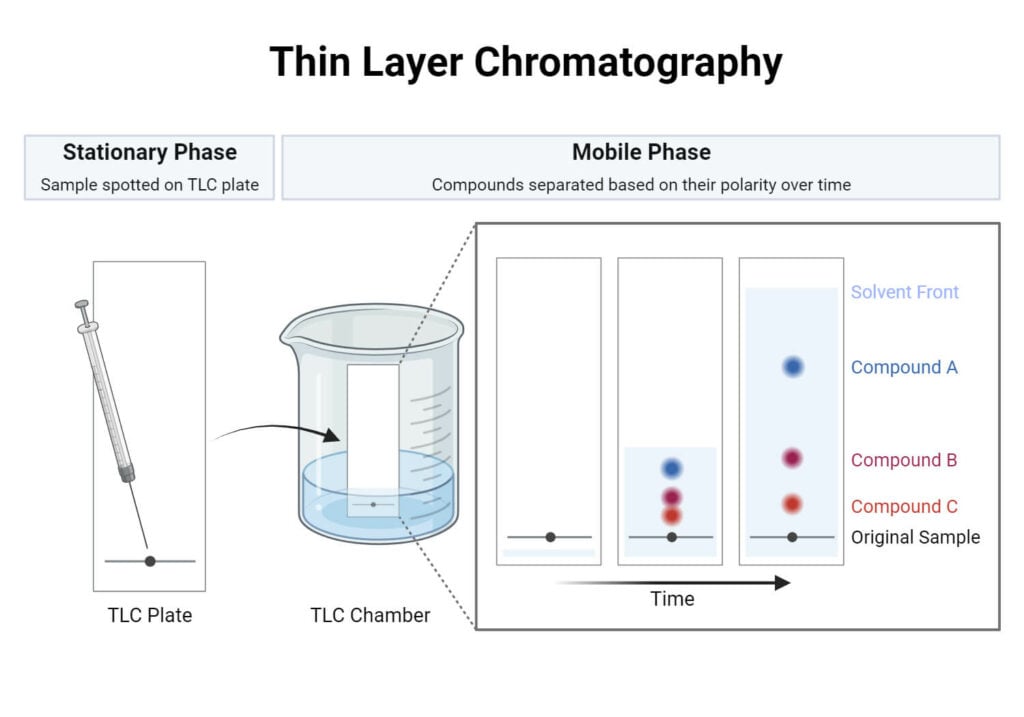

Thin-layer Chromatography( TLC): Is a way to find out what paraphernalia are in a sample, indeed if there's just a little of them. It can be used to develop styles to check if drug treatments stay stable. still, it has some problems, like not being truly accurate when measuring. But it's easy to use and can find multitudinous paraphernalia quickly. However, it can be used for measures If linked to a densitometry system like HPTLC. This makes it useful for some paraphernalia that are hard to anatomize with other styles because they don't have a color-changing part. TLC detects substances by applying them with a discovery reagent. It's constantly used beforehand in testing to find out how many breakdown products come from a medicine. HPTLC is more sensitive and hastily than regular TLC. HPTLC has multitudinous advantages over TLC. It can be used to measure paraphernalia that are hard to analyze with other chromatography methods, especially when used with densitometry or HPTLC. Discovery in TLC happens when chemicals react with a discovery reagent. TLC is constantly used beforehand to see how many breakdown products form from a treatment.

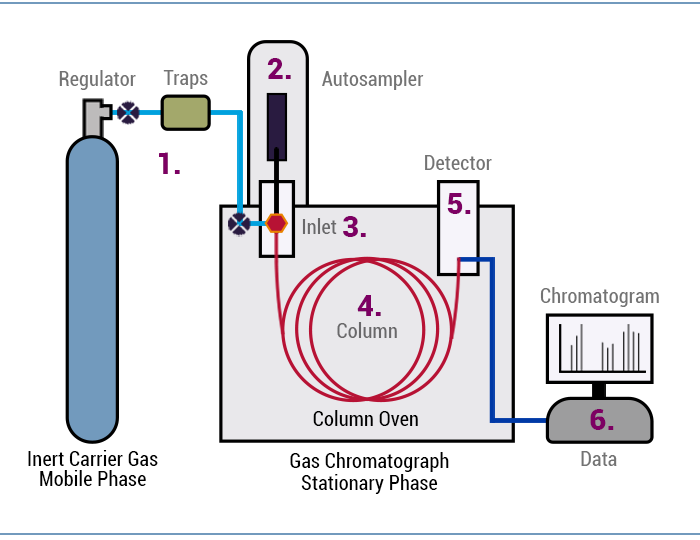

Gas Chromatography (GC): Is used to find impurities that can be turned into gas and can be toast without breaking down. It helps check the quality and amount of active pharmaceutical ingredients (APIs). It can also be used to find changeable impurities like solvent residue in medicines. GC is used to check the raw paraphernalia used to make drugs. GC has several advantages, analogous as hastily run times, quicker sample processing, fewer precious columns, and better signal-to-noise ratios. still, using GC can be delicate and requires care. GC can only be used with paraphernalia that can be turned into gas without breaking down.

Limitations: During the ionization process, some mixes break into multitudinous corridors, making the spreads complex and hard to understand. In some cases, ions aren't clear enough or fragments are too scattered, which reduces perceptivity.

Flash Chromatography: Flash chromatography is a better option than slow staidness rested chromatography. It uses medium pressure and shorter columns and is driven by air pressure. This makes the cleaning flux faster, reducing the time demanded to purify a sample. It uses small patches of silica gel(between 250 and 400 mesh) under pressure to push the cleaner through the stationary phase

HPTLC: HPTLC is hastily and more sensitive than conventional flash chromatography.

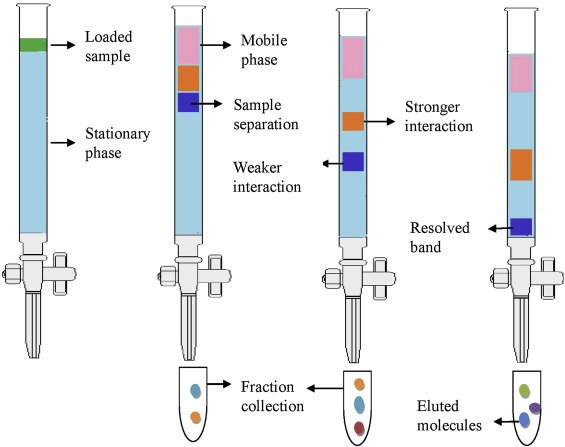

Column Chromatography: Column Chromatography is a method that separates substances by moving them through a stationary phase as they are carried by a mobile phase. Different paraphernalia come out of the column at different times depending on how well they mix with the mobile phase. This gives good separation. still, the system can be slow because the solvent moves slowly through the column. The main advantage of column chromatography is that it can be scaled up for larger tasks. It's useful when trying to separate and purify an amalgamation to make an intermediate in a chemical process. A strike is that setting up and using a column can take a lot of time.

Liquid Chromatography (LC): Primary Liquid Chromatography (LC) is a system used to separate and purify impurities from drug treatments. Since impurities in medicine are constantly present in truly small amounts, they need to be isolated first for thorough testing. In pharmaceutical settings, this can be a challenge. primary LC is useful in separating impurities for testing and analysis, like using methods analogous as FTIR, NMR, LC/ MS, etc.

Supercritical Fluid Chromatography: Supercritical Fluid Chromatography (SFC) is a type of normal phase chromatography used to analyze and purify molecules of low to moderate size that are sensitive to heat. It can also separate chiral mixes. Its principles are similar to those of HPLC, but SFC generally uses carbon dioxide as the mobile phase. The entire system must be under pressure.

UV Spectrometry: UV Spectrometry is a system that uses light in the visible, ultraviolet, and near-infrared areas. The Beer-Lambert law says that the amount of light absorbed by a result is directly related to the concentration of the substance in the result and the distance the light travels through it. So, if the path length is constant, UV/ VIS spectroscopy can be used to find the concentration of an absorbing substance in a result. It's important to understand how snappily the absorbance changes with attention.

NMR spectroscopy

NMR Spectroscopy: It is a strong and complex logical system. In NMR, the terrain around certain eyes provides information about the chemical structure of a patch.

APPLICATIONS OF ISOLATION AND CHARACTERIZATION OF IMPURITIES

Operations of ISOLATION AND CHARACTERIZATION OF contaminants, numerous operations have been sought in the areas of medicine, designing, and monitoring. Quality, stability, and safety of pharmaceutical composites, whether produced synthetically, extracted from natural products, or produced by recombinant methods. The operations include alkaloids, amines, amino acids, anesthetics, antibacterials, anticonvulsants, antidepressants, painkillers, antineoplastic agents, original anesthetics, macromolecules, steroids, and so on.

CONCLUSION: This review offers a glimpse into contamination profiling in medicine products and substances. This composition offers important details on the numerous kinds of contamination and how to insulate and characterise them. multitudinous logical styles have been developed for the purpose of determining, relating, and qualifying pollutants and important variables. Be taken into account while preparing the bulk specifics. This composition provides the precious information about the contamination types and their bracket, colorful ways of insulation and characterization, logical ways for the determination, qualification of contaminations, and critical factors to be considered while medication of the bulk medicines. It is relatively pivotal. It offers essential information about the medicine’s effectiveness, safety, and quality. Distinct nonsupervisory bodies and ICH had preliminarily established norms in their recommendations, yet indeed these are inadequate to guarantee the quality of the product by 100, therefore they must be streamlined going forward.

REFERENCES

  1. International Conference on Harmonisation of Technical Requirements for Registration of Pharmaceuticals for Human Use (ICH). Impurities in New Drug Substances Q3A (R2) 2006;15.
  2. International Conference on Harmonisation (ICH). Q3B (R2). Impurities in new drug products. ICH Harmon Tripart Guidel 2006;12.
  3. Gorog S. Identification and Determination of Impurities in Drugs. Amsterdam: Elsevier Science Publishing Company; 2000.
  4. Alsante KM, Hatajik TD, Lohr LL, and Sharp TR. Isolation and identification of process related impurities and degradation products from pharmaceutical drug candidates. Part 1.American Pharmaceutical Review. 2001; 4(1):70-78.
  5. A.K. Landge, V.K. Deshmukh, S.R. Chaudhari, Impurities in Pharmaceuticals- A Review, Journal of Current Pharma Research 2013; 4:1112-1114.
  6.  Anita Singh, SadafAfreen, DhirendraPratap Singh and Rajeev Kumar, A Reviewon Pharmaceutical Impurities and their Importance, World Journal of Pharmacy and Pharmaceutical Sciences2017; 6:1351.
  7. Federal Register, International Conferences on Harmonization. Impurities in New Medicinal Products, 3AQ12a, 1996: 95-105.
  8. Rao NR, Mani KSS, Prasanthi NL. Pharmaceutical Impurities: An Overview. Indian J. Pharm. Educ. Res, 2010; 44(3): 301-310.
  9. Desai P, Captain A, Kamdar S (2012) Development and Validation of HPTLC Method for Estimation of Tramadol HCl in Bulk and in Capsule Dosage Form. Int J Pharm Tech Res 4(3): 1261-1265,
  10.  Peter K, Mlynska MS, Baniszewski B (2020) Determination and Identifica tion of Antibiotic Drugs and Bacterial Strains in Biological Samples. Mol ecules 25(11): 2556.
  11. Reddy BP, Reddy MS (2009) Residual solvents determination by HS-GC with Flame Ionization Detector in Omeprazole Pharmaceutical formula tions. Int Pharm Tech Res1(2): 230-234.
  12.  Hashimoto K, Urakami K, Fujiwara Y, Terada S, Watanabe C (2001) De termination of Residual Solvents in Pharmaceuticals by Thermal Desorp tion-GC/MS. Anal Sci 17(5): 645-648.
  13. Saraji M, Khayamian T, Siahpoosh ZH, Farajmand B (2012) Determination of volatile residual solvents in pharmaceutical products by static and dy namic headspace liquid-phase microextraction combined with gas chro matography-flame ionization detection. Anal Methods (6): 1552-1559.
  14. Josephs JL, Sanders M, Shipkova P. Detection and Characterization of Pharmaceutical Metabolites, Degradants and Impurities by the Application of MS / MS Software Algorithms; Technical Program. 2007 Feb 25;
  15. Condorelli G, De Guidi G, Giulfrido S. Molecular mechanisms of photosensitization induced by drugs XII. Photochemistry and photosensitization of rufloxacin: An unusual photodegradation path for the antibacterials containing a fluoroquinolone like chromophore. Photochem Photobiol. 1999;70:280–6.
  16. Connor KA, Amidon GL, Stella VJ. 2nd ed. New York: John Wiley and Sons; 1986. Chemical Stability of Pharmaceuticals- A Handbook for Pharmacists; pp. 182–4.
  17. Abolghasem Jouyban, Review Impurity Analysis of pharmaceutical using capillary electromigration methods, Electrophoresis, 2008; 29: 3531-3551.
  18. Musty Sharada, Determination & characterization of process impurities for Eprosartan Mesylate, Journal of Pharmacy Research (2013)
  19. David P.Myers, Advances in HPLC technology for the determination of drug impurities; Trends in Analytical Chemistry, 2006; 25: 8.
  20. Gauri P Jadhav, Drug Impurity Profiling: A Scientific Approach; Journal of Pharmacy Research, 2014; 8(6): 696-706. Keitel S. Impurity Profiles in Active Pharmaceutical Ingredients.EU / Swissmedic GMP Workshop Beijing University. 2006 Sep
  21. S
  22. Ahuja, S., & Alsante, K. M. (Eds.). (2003). Handbook of isolation and characterization of impurities in pharmaceuticals (Vol. 5). Academic press.
  23. Görög, S. (Ed.). (2000). Identification and determination of impurities in drugs (Vol. 4). Elsevier
  24. Radhakrishna T, Satynarayana J, Satynarayana A. HPLC method for the Degradation of Celecoxib and its Related Impurities. Indian Drugs. 2002;40:166.
  25. Zawilla NH, Li B, Hoogmartens J. Improved RP-LC method combined with pulsed electrochemical detection for the analysis of amikacin. J Pharm Biomed Anal. 2006;42:114. doi: 10.1016/j.jpba.2006.06.043.
